The Ultimate Guide to VFD Drive Siemens (V20, G120, S120)

VFD Drive Siemens

Understanding VFD Drive Siemens

Variable frequency drives (VFDs) from Siemens allow industrial motors to run at the exact speeds needed for an application. A VFD controls an AC motor’s speed and torque by adjusting the frequency and voltage of the power supply. The term VFD Drive Siemens is used to refer to the series of variable-speed motor controllers (named SINAMICS) of Siemens that utilize this technology. The main idea is to alter the input power gradually so that the drive ceases to be a wasteful entity and becomes a better performer, along with the process by adjusting the output of the motor to the demand. For instance, installing a VFD on a pump or a fan can lead to energy savings of about 20-50% because the drive will only provide the necessary power.

Earlier, motor speed control relied on bulky mechanical methods like gears and belts. Modern Siemens VFD drives have replaced these with compact, efficient electronic control. Today, they manage everything from simple fans and pumps to complex multi-motor factory systems, offering users flexible speed control and seamless integration with modern automation.

SINAMICS V20 – Entry-Level VFD Drive Siemens

  • Compact & Budget-Friendly
    • The SINAMICS V20 is a small and entry-level Siemens VFD Drive, which is specifically made for basic motion control in manufacturing.
  • Ideal for Simple Applications
    • Siemens describes the V20 as “the choice for simple motion sequences,” making it perfect for straightforward, cost-effective use cases.
  • Power Range
    • The motor output that can be supported is from around 0.12 to 30 kW (1/6 to 40 HP).
  • Common Use Cases
    It is suitable for the following small machine applications:

    • Pumping
    • Ventilation
    • Material handling
  • User-Friendly Setup
    • The first step of commissioning and configuration can be done quickly
    • Reliability is increased by the built-in motor protection
  • Energy-Saving Features
    • The ECO mode is among the features that help to cut down energy consumption and lowers operational costs
  • Flexible Control Modes
    • Offers both standard V/f and sensorless vector control for reliable performance
  • Best Fit
    • Ideal for users seeking a dependable Siemens AC drive without complex configuration or programming

siemens drives

SINAMICS G120 – General-Purpose Siemens VFD Drive

  • Type & Design
    • The SINAMICS G120 is a modular, general-purpose VFD Drive Siemens designed for a wide variety of industrial applications.
    • The system was constructed with a separate power module, a control unit, and an optional operator panel, thus it becomes very easy to customize the setup of your system.
  • Power Range
    • It spans a very broad operating range of roughly 0.37 kW to 250 kW, thereby making it suitable for the entire range of small to mid-large AC motor systems.
  • Purpose & Application
    • Siemens has developed a very precise and affordable speed/torque control VFD Drive.
    • Commonly applied in:
      • Conveyor mechanisms
      • Pumping systems
      • Ventilation and fan applications
      • Other mid-range industrial machines that require reliable VFD Drive Siemens solutions
  • Control Modes
    • Supports multiple motor-control technologies:
      • V/f (Voltage/Frequency) control
      • Sensorless vector control
      • Encoder-based vector control for higher motion accuracy
      • Ease of Commissioning
    • Siemens StartDrive is used, greatly simplifying configuration, setting parameters, and commissioning.
  • Safety & Industrial Connectivity
    • Among modern features characteristic of advanced VFD Drive Siemens systems are:
      • Safe Torque Off (STO)
      • Ethernet and fieldbus communication options
    • The system is designed to be easily integrated into automated and Industry 4.0 setups.

To learn how Siemens drives can save energy and improve process efficiency in pump and fan systems, refer to our detailed SINAMICS G120 guide.

SINAMICS S120 – High-Performance VFD Drive Siemens

  • Type & Purpose
    • The SINAMICS S120, Siemens series, is a high-performance VFD Drive, which is essentially for complex and highly dynamic motion control tasks.
    • The drive is built specifically for the applications that require rapid response, exact synchronization, and multi-axis coordination.
  • Performance Characteristics
    • The drive system is sometimes regarded as the most advanced one of all, due to being specifically engineered for high-performance and dynamic motion control environments.
    • Supports ultra-fast response with:
      • Direct Torque Control (DTC)
      • Field-oriented control (FOC)
    • These two together not only enable but also ensure maximum accuracy and high torque precision.
  • Applications
    • VFD Drive Siemens is also commonly used in the demanding automation systems, which consist of:
      • Robotics and robotic cells
      • CNC machining centers
      • High-speed packaging lines
      • Printing, textile, and multi-axis machines
      • Any kind of setup that asks for necessary coordinated and synchronized movements with the help of VFD Drive Siemens.
  • Architecture & Modules
    • Following is the configuration of the VFD-teamed-up-multi-axis servo converter system.
    • Often includes:
      • Multiple interconnected power and control modules
      • High-speed industrial communication networks
      • Advanced motor-feedback devices (encoders, resolvers)
  • Modular, Scalable, and Customizable
    • Offers a modular design with:
      • Scalable power units
      • Optional liquid-cooling systems
    • Thus, engineers can be allowed to make the very precise configuration of the system that conforms to the needs of the high-performance machinery.
  • Integration & Precision
    • Designed to provide coordinated multi-axis motion with the strictest synchronization between the drives.
    • It is the case when the manufacturers need very top performance levels among all VFD Drive Siemens options.

For a detailed look at using Siemens drives to boost efficiency in textile processes, check out our VFD Drive Siemens textile automation guide.

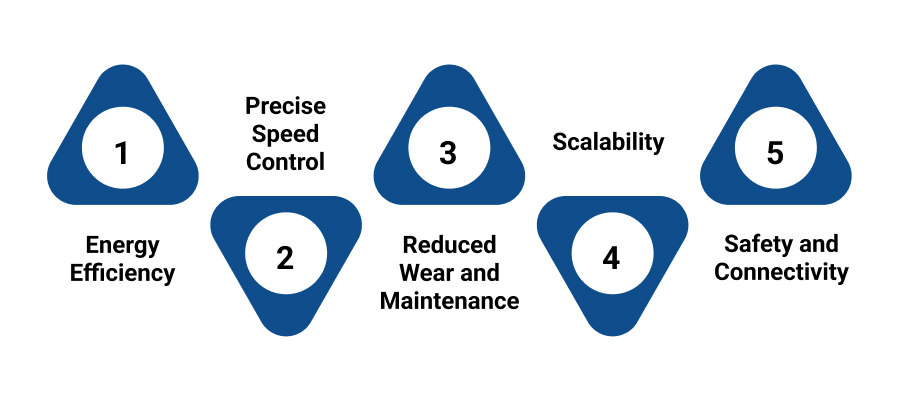

Key Benefits of Siemens VFD Drives

Siemens VFD Drive

  • Energy Efficiency: VFDs control electric motors to give just the required power and thus save electricity. For instance, the implementation of a Siemens VFD in a pump can lead to a reduction in its energy consumption by almost 50% because the drive gives out only the required amount of power.
  • Precise Speed Control: The supply frequency varies in such a way that Siemens AC drives provide adjustments at both speed and torque. This gives a very smooth start/stop operation and inline processing control (which is crucial in feeders, blenders, cooling and cleaning systems, etc.).
  • Reduced Wear and Maintenance: The two features that come with this reduced motor and electric drive stress are longer periods of use and lower periods of maintenance. Motors and all the parts connected to them experience less pressure, as a result, the costs of maintenance and repairs decrease over time.
  • Scalability: Multi-motor setups are allowed by several Siemens drives. For example, some G120 controllers can operate two motors at the same time (Dual-Drive) from one inverter, thus reducing the costs of hardware. The S120 takes a step further by making use of the combination of several power modules for multi-axis systems.
  • Safety and Connectivity: Integrated safety features (like Safe Torque Off) are a part of the modern Siemens drives, and they can also connect to industrial networks (like Profinet and EtherNet/IP). This makes it easier to comply with safety regulations and connect drives to automation networks.

The selection of a high-quality VFD Drive Siemens is what gives these benefits for any application. The right Siemens VFD selection guarantees increased efficiency and control no matter how large or fast the motor you are using.

Applications of Siemens VFD Drives

  • HVAC and Building Services: In heating/cooling systems, VFD drives control the speeds of fans, pumps, and compressors, thus enabling better comfort and efficiency.
  • Pumping and Water Systems: Water pumps in treatment plants, irrigation, and flood-control systems operate at variable speeds according to the flow requirements.
  • Manufacturing and Material Handling: Various production equipment such as conveyor systems, mixers, and extruders will be running at variable speeds where the production rate can be matched with quality improvement.
  • Automation and Robotics: High-precision motion control is available for machine tools, packaging machines, assembly lines, and robot drives (especially with advanced S120 multi-axis configurations).
  • Renewable Energy: Wind/solar farms Speed of the generator or inverter is controlled to optimize the capture of energy and meet grid requirements.

Siemens VFD drives are highly valued in every industry where there is a need for motors with adjustable speed control and energy savings. The deployment of a Siemens VFD drive for any of these situations is the norm.

Choosing the Right Siemens VFD Drive

Selecting the right VFD Drive Siemens involves assessing the required power range, control features, and budget. Professional advice would typically consider parameters such as the required motor kW, the degree of control required (single-axis versus multi-axis), the surrounding conditions, and the budget. The SINAMICS series generally matches well with the following applications:

  • SINAMICS V20: Most suitable for simple, low-cost applications (small pumps, fans, conveyors up to ~30 kW) where only basic speed control is required.
  • SINAMICS G120: Drive for all-purpose applications (fans, pumps, conveyors, mixers) up to 250 kW with higher control precision and wider range.
  • SINAMICS S120: The device is designed for high-performance multi-axis systems (robots, CNC machines, and packaging lines) that require the best speed and torque response.

For tight budgets, the V20 is the ideal choice. The G120 suits medium-power applications that need more flexibility or stronger communication features. For complex multi-motor synchronization, the S120 is the top VFD Drive Siemens option. Always consider enclosure rating, cooling needs, and integration requirements when selecting a model.

Conclusion

With a wide range of VFD Drive Siemens solutions – from the compact V20 to the powerful S120 – Siemens has all the industrial needs. Choosing the right VFD Drive Siemens correctly ensures motor control efficiency, energy savings, and reliable operation. The implementation of these Siemens drives can continuously improve process control by cutting down facilities costs. For assistance in selecting or deploying the right VFD Drive Siemens, consult Naksh Technology Solutions LLP. Our staff are skilled in Siemens drive systems and can take care of everything from the first setup to maintenance, ensuring your factory gets the maximum performance from its operations.

FAQs Related to VFD Drive Siemens

Q. What is a VFD Drive Siemens and how does it work?

Ans: A VFD Drive Siemens controls AC motor speed by adjusting frequency and voltage. This lets the motor run only as fast as needed, improving efficiency and reducing wear.

Q. What is the difference between Siemens V20, G120, and S120?

Ans: V20: Simple, low-cost drive for basic pumps, fans, and small machines.
G120: Medium-power, flexible drive with safety and communication features.
S120: High-performance drive for multi-axis, fast, synchronized motion.

Q. Where are Siemens VFD drives commonly used?

Ans: In HVAC, pumping systems, conveyors, packaging machines, and automated manufacturing lines.

Q. Can Siemens VFD drives integrate with PLCs and automation systems?

Ans: Yes. They work seamlessly with SIMATIC PLCs, PROFINET/PROFIBUS, and other industrial communication networks.
